Standard 10" to 16" Diagonal Multiple Spindle Heads
This page is for request a quote only. Please select the options below that best fit your project. Once a request for quote is submitted, a Zagar expert will contact you to gather additional application details and provide a formal proposal.

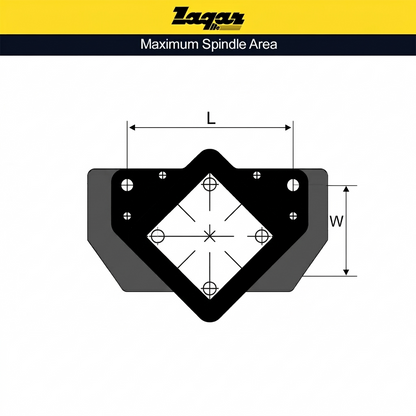

Zagar 12 inch diagonal multiple head has 13.02" x 13.03", 12.01" x 12.01", or 11.00" x 11.00" of spindle area.

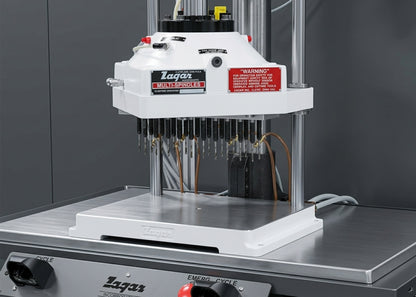

Zagar multiple spindle heads are available in square, diagonal, and rectangular configurations and are engineered to help shops maximize drilling and tapping output. These heads allow you to drill and tap anywhere from 1 to over 200 holes in a single operation, significantly reducing cycle time and increasing productivity.
Thanks to Zagar’s gearless design, spindles can be configured in virtually any pattern or layout, giving you the flexibility to match your exact part requirements.
Multiple spindle heads are highly application specific and require expert involvement to ensure the right solution. By selecting the options below, you can view an estimated price range for your configuration. To receive a detailed quote and application review, please submit a request for quote below.
Pairs well with
Standard 10" to 16" Diagonal Multiple Spindle Heads
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Frequently asked questions
When should I expect a formal quote and what is the lead time?
Our experts will review your application and follow up with a few additional questions. You can expect a quote within 7 days of submitting your request. Current lead time is approximately 14–16 weeks for a gearless head.
Can spindles be configured in random patterns?
Yes! Zagar's gearless head technology allows us to create any configuration and pattern you need for your solution.
How many holes can a gearless head drill at once?
Zagar can drill and/or tap anywhere from 1 to hundreds of holes in a single operation, including patterns with close centers.
Can Zagar build a custom machine around the multiple spindle head?
Zagar can build a custom machine solution to accommodate your multiple spindle head. Also, depending on size and limitations, some Zagar multi-heads can be mounted to your existing mills.
